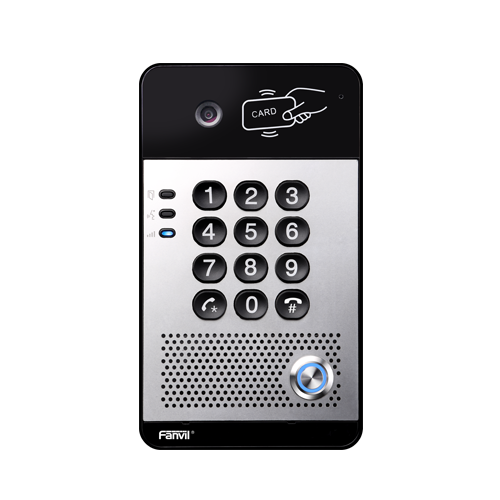

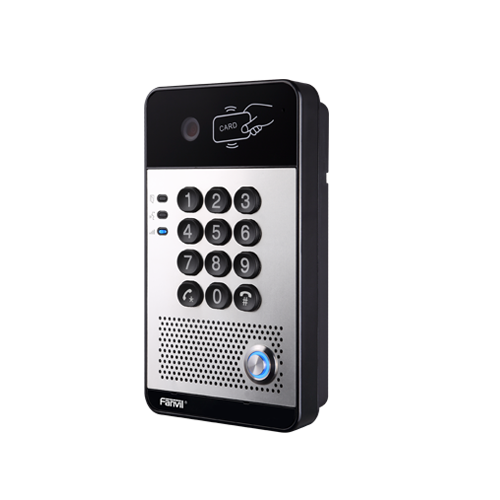

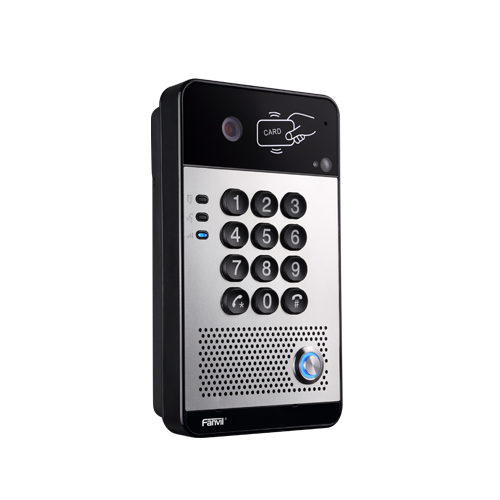

i30 Audio Door Phone
|
The design of i30 IPVideo Door phoneis based on experience and knowledge of Fanvil VoIPphone development.Stream transmission uses standard IP / RTP protocol and video transmission adopts RTSP.I30 have a variety of enterprise-level features andit is compatible with lots of major platforms, such as 3CX, Asterisk, Broadsoft, Elastix, etc. The i30 IPVideo door phone is designed for operation in indoor conditions. The robust mechanical construction offers protective coverage rating against dust and water (IP65). The i30 is economical devices with triple function(All in one)-Accesscontrolby call, code ,indoor switch and RFID card |
|
Highlights
|
Access control function
- Two SIP lines, support SIP 2.0 (RFC3261) and related RFC
- Full-duplex handsfree (HF)
- Default Auto Answer
- Open the door operation: DTMF, password, RFID card, switch
- Support 200,000 door open records
- Support 1000 remote access list
- Support1000 RFID cards
- Supportelectric lock internal or external powersupplyoptions
- Support customizedDSS keys
- Network Time Synchronization
- Action URL / Active URI remotecontrol
Audio
- Narrowband speech codec:G.711a / u, G.723.1, G.726-32K, G.729AB
- Broadband speech codec: G.722
- Full DuplexEcho Cancellation (AEC)
- DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info
Video
- Sensor: 1/4 "color CMOS
- Pixels: 1 million
- Videocodec: H.264
- Resolution: The main stream1280*720
Sub-stream352*288(CIF),704*576（D1）
- Viewing angle: 110 ° (H), 95 ° (V)
- Minimum illumination: color 0.1Lux,black and white 0.01Lux,temporarily does not support infrared lighting
Networking/ Protocols
- SupportPoE (802.3af)
- Primary and secondary DNS servers are supported
- Support RTSP
- SupportSNTP client
- Support VPN L2TP / openVPN
- SupportSRTP
- Support HTTP / HTTPS web pages
- Support Qos: 802.1p / q, DSCP
- Support MD5 authentication
- SupportWeb Filter
- DHCP / static / PPPoE
- Support STUN
Physical Specifications
- 1 DSS button (speed dial button)
- 4 indicator lights (including hot-key backlight)
- Numeric keypad
- 1 indoor switch
- 1 relay: MAX DC30V / 1A, AC125V / 0.5A
- Active switching output: 12V / 650mA DC
- RFID reader:ID(EM4100),IC(MIFARE ONE)
- RFID card number output: positive sequence output 8H10D
- Microphone: -38dB
- Speaker: 4Ω / 3W
- WAN port: RJ-45, 10 / 100M adaptive
- Power supply: 12V ± 15% / 1A DC or POE
- PoE: 802.3af (Class 3 -6.49 to 12.95W)
- Standby power: 2.76W, 12V / 230mA
- Network cable: CAT5 or better
- Shell material: metal surface, ABSbottom shell
- Installation: wall-mounting
- Operating temperature: -20 ~ 60 ℃
- Storage temperature: -40 ~ 70 ℃
- Relative humidity: 10 ~ 90%
- Protection class: IP65
- Equipment weight: 330g
- Equipment size: 160x93x35mm
- Packing size: 209x118x64mm
- CTN Size: 340x250x224mm (10 PCS)
