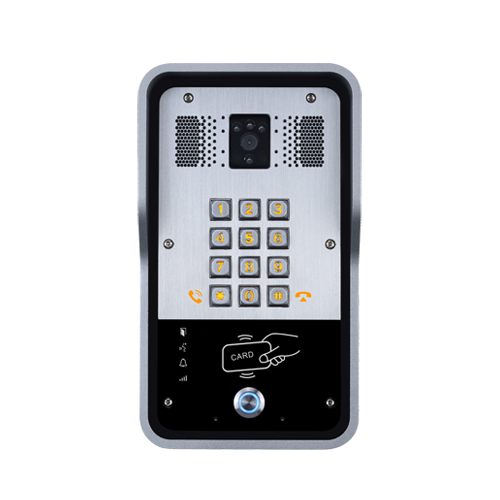

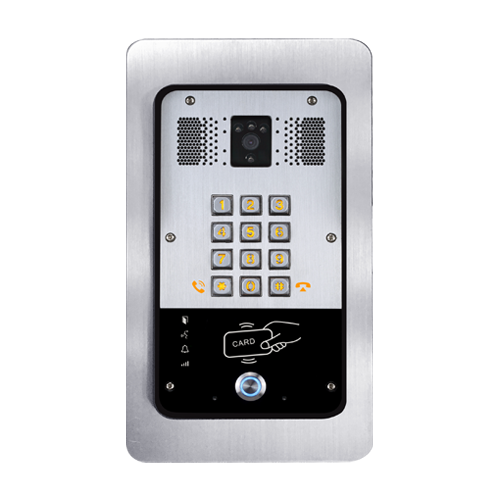

i31S Audio Door Phone

The design of i31SIPVideo Door phone are based on experience andknowledge of Fanvil IP phone development.i31Sare using standard IP/RTP/RTSP protocol for voice transmission and enjoy the advantages of fullrange of compatibility.i31Shave a variety of enterprise-level features and compatible with lots of major platforms,such as 3CX, Asterisk,Broadsoft,Elastix,etc.

The i31SIPVideo door phone is designed for operation in indoor conditions. The robust mechanical construction offers protective coverage rating against dust and water (IP65).

The i31Sis economical devices with triple function(All in 1)-Access control by call,code and RFID card

Highlights

Compatible with standard SIP(RFC3261) protocol and main IPPBX/IMS platform
Enclosure designed on International Protection (IP) markings to protect against intrusion-accidental or intentional -waterproofed to IP65 and anti-collision up to IK10.
The system design adapts to operating under various environmental conditions andtemperatures (supports temperatures ranging from -40 to +70 Celsius.)
Status indication icon
All-in-One(Access Control, Intercom and Broadcasting)
Access Control(by call, by code, IC/RFID, Indoor Switch)
Built-in3W speaker and AEC, support high quality hand-free communication.
Built-inHD camera and with backlight compensation function
System online maintenance and management

Access control function

Two SIP lines, support SIP 2.0 (RFC3261) and related RFC
POE Enabled
Full-duplex handsfree (HF)
Default Auto Answer
Open the door operation: DTMF, password, RFID card, switch
Support 200,000 door open records
Support 1000 remote access list
Support1000 RFID cards
Supportelectric lock internal or external powersupplyoptions
Support customizedDSS keys
Network Time Synchronization
Action URL / Active URI remotecontrol

Audio

Narrowband speech codec: G.711a / u, G.723.1, G.726-32K, G.729AB
Broadband speech codec: G.722
Full DuplexEcho Cancellation (AEC)–96ms tail-length
DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info

Video

Sensor: 1/3"color CMOS
Pixels: CIF,QCIF,VGA,4CIF,960P(HD)
Videocodec: H.264
Resolution: The main stream1280*920,1280*720 Sub-stream:704*576(D1)
Viewing angle: 115°(H), 87°(V)
Minimum illumination: color 0.01Lux,black and white 0.001Lux

Networking/ Protocols

SupportPoE (802.3af)
Primary and secondary DNS servers are supported
Support RTSP
SupportSNTP client
Support VPN L2TP / openVPN
SupportSRTP
Support HTTP / HTTPS web pages
Support Qos: 802.1p / q, DSCP
Support MD5 authentication
SupportWeb Filter
DHCP / static / PPPoE
Support STUN

Deployment & Maintenance

Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP
Web Management Portal
Web-based Packet Dump
Configuration Backup / Restore
Entry Log Export
Access Table Export / Import
